Everyone who suffers from a heart problem or has a loved one who suffers from a heart problem must wonder about how to read ECG report. The electrocardiogram (ECG or EKG) is a fundamental tool in cardiology, providing invaluable insights into the electrical activity of the heart. Despite its widespread use in medical diagnostics, interpreting an ECG report can be daunting for those unfamiliar with its intricacies. This blog aims to demystify the ECG report, empowering individuals to understand their heart health better.
What is an ECG Report?
Components of an ECG Report
- P Wave: Represents atrial depolarization (contraction).
- QRS Complex: Depicts ventricular depolarization (contraction).
- T Wave: Illustrates ventricular repolarization (relaxation).
These components are crucial in analyzing the heart’s rhythm, rate, and any potential abnormalities.
Understanding the ECG Paper
An ECG paper is typically graphed with time along the horizontal axis and voltage along the vertical axis. Each small square on the paper represents a specific duration and voltage. Understanding the paper’s calibration helps in accurately interpreting the intervals and segments of the ECG waves.

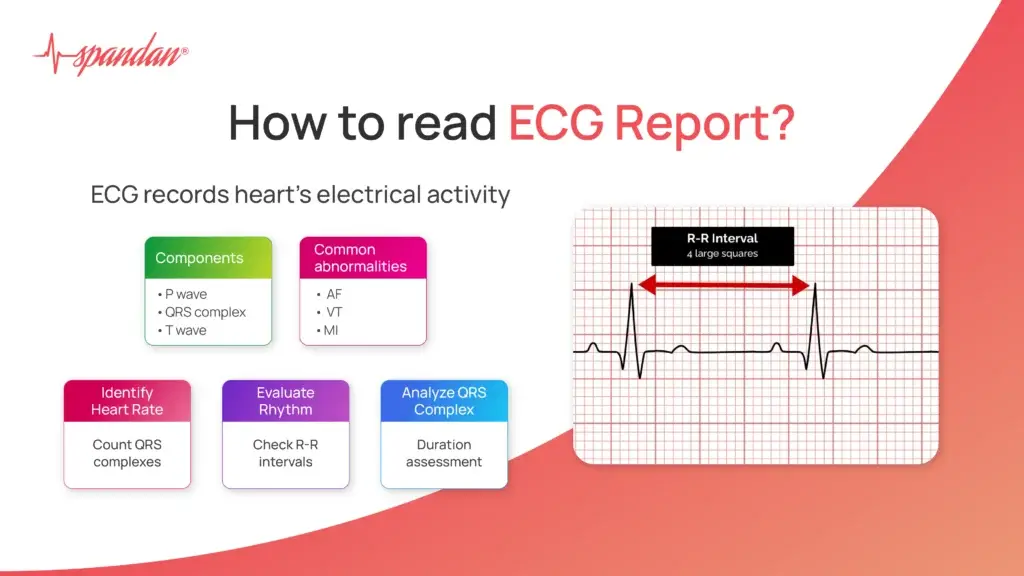

How to read ECG Report?
- Identify the Heart Rate:
- Calculate the heart rate by determining the number of QRS complexes in a 6-second strip and multiplying by 10.
- Normal heart rate ranges between 60 to 100 beats per minute.
- Evaluate the Rhythm:
- Check the regularity of the R-R intervals.
- Irregular rhythms can indicate conditions like atrial fibrillation.
- Assess the P Wave:
- Measure the duration and shape of the P wave.
- Abnormalities may suggest atrial enlargement or conduction disorders.
- Analyze the QRS Complex:
- Measure the duration (normally <0.12 seconds).
- Wide QRS complexes can indicate ventricular conduction delays or bundle branch blocks.
- Review the ST Segment and T Wave:
- Ensure the ST segment is flat and the T wave is upright.
- Changes can indicate myocardial ischemia or injury.
- Examine the QT Interval:
- Measure from the start of the Q wave to the end of the T wave.
- Prolonged QT intervals may predispose to arrhythmias.
- Check for Additional Findings:
- Look for signs of hypertrophy, infarction, or electrolyte disturbances.
Common Abnormalities and Their Significance
- Atrial Fibrillation (AF): Irregularly irregular rhythm with no discernible P waves causing P-wave ECG abnormalities.
- Ventricular Tachycardia (VT): Wide QRS complexes causing Wide Complex Tachucardia with a rate >100 bpm.
- Myocardial Infarction: ST segment elevation or depression in specific leads.
Insights into Common Patterns and Their Implications on an ECG
Now, we will delve deeper into the various common patterns and deviations observed in ECG reports, providing insights into what these variations might indicate about your heart health:
- Sinus Rhythm vs. Arrhythmias:
- Explanation of sinus rhythm as the normal heart rhythm and identification of common cardiac arrhythmias such as atrial fibrillation, atrial flutter, ventricular tachycardia, monomorphic ventricular tachycardia, and monomorphic atrial tachycardia.
- ST Segment Changes:
- Understanding the significance of ST segment elevation and depression, including their association with myocardial ischemia, infarction, and other cardiac conditions.
- Bundle Branch Blocks:
- Explanation of bundle branch blocks (left and right) and their implications for the heart’s electrical conduction system.
- T Wave Abnormalities:
- Discussion on inverted T waves, peaked T waves, and their correlation with electrolyte imbalances, myocardial ischemia, and other cardiac disorders.
- QT Interval Prolongation:
- Insights into QT interval prolongation and its potential to predispose individuals to life-threatening arrhythmias like Torsades de Pointes.
- Axis Deviation:
- Explanation of axis deviation (left and right) and its clinical significance in diagnosing cardiac hypertrophy, conduction abnormalities, and other heart conditions.
By exploring these variations, readers gain a deeper understanding of how ECG findings can offer valuable clues about their heart health and the potential need for further evaluation or intervention. Understanding these nuances empowers individuals to participate actively in their cardiac care and promotes informed discussions with healthcare providers.
When to Seek Medical Attention
Understanding when to consult a healthcare professional based on an abnormal ECG finding is crucial:
- Chest Pain: Especially if accompanied by abnormal ST segment changes.
- Heart Palpitations: Especially if associated with irregular rhythms.
- Shortness of Breath: Especially with signs of heart failure on ECG.
Reading an ECG report is a skill that combines science with interpretation. While this guide provides a foundational understanding, always consult a healthcare provider for accurate diagnosis and treatment. By demystifying the ECG report, individuals can actively engage in monitoring their heart health, fostering proactive management and prevention of cardiovascular diseases. Remember, knowledge empowers, especially when it comes to understanding your heart’s rhythm.
