An electrocardiogram or ECG/ EKG is an essential tool in monitoring heart abnormalities. It is a non-invasive process in which the heart’s electrical activity is monitored through electrodes, leads, amplifiers, and a recording device. So, naturally, ECG placement plays a crucial role in determining electrical impulses radiated by the heart from different positions. The accuracy of an ECG test highly depends on the placement of the electrodes on the body of the patient.
The electrodes in the ECG placement are placed in various parts of the patient body to get a vivid look at the heart’s electrical activity. Through this blog, we will completely demystify the ECG placement and describe how it is the key to accurate readings in the test. Apart from this, we will also share some tips for accurate precision during an ECG test as well.
Understanding ECG Placement
The placement of electrodes in an ECG test is of crucial importance for the accuracy and reliability of the ECG readings. The electrodes in an ECG test pose as sensors, they detect all the electrical signals generated by the heart. If we place the electrodes properly on the body of the patient during ECG placement then the chances of getting accurate readings of the impulses generated by the heart highly increase.
In a 12-lead ECG test, electrodes are placed on 10 distinct leads. These leads are then placed on the body of the patient and capture the electrical impulses generated by the heart. The impulses are then amplified by the amplifier and the waves of ECG form on the recording device in the form of P-wave (atrial depolarization), QRS complex (ventricular depolarization and T-wave (ventricular repolarization). Let’s learn more about the standard leads in the ECG placement in the blog below.

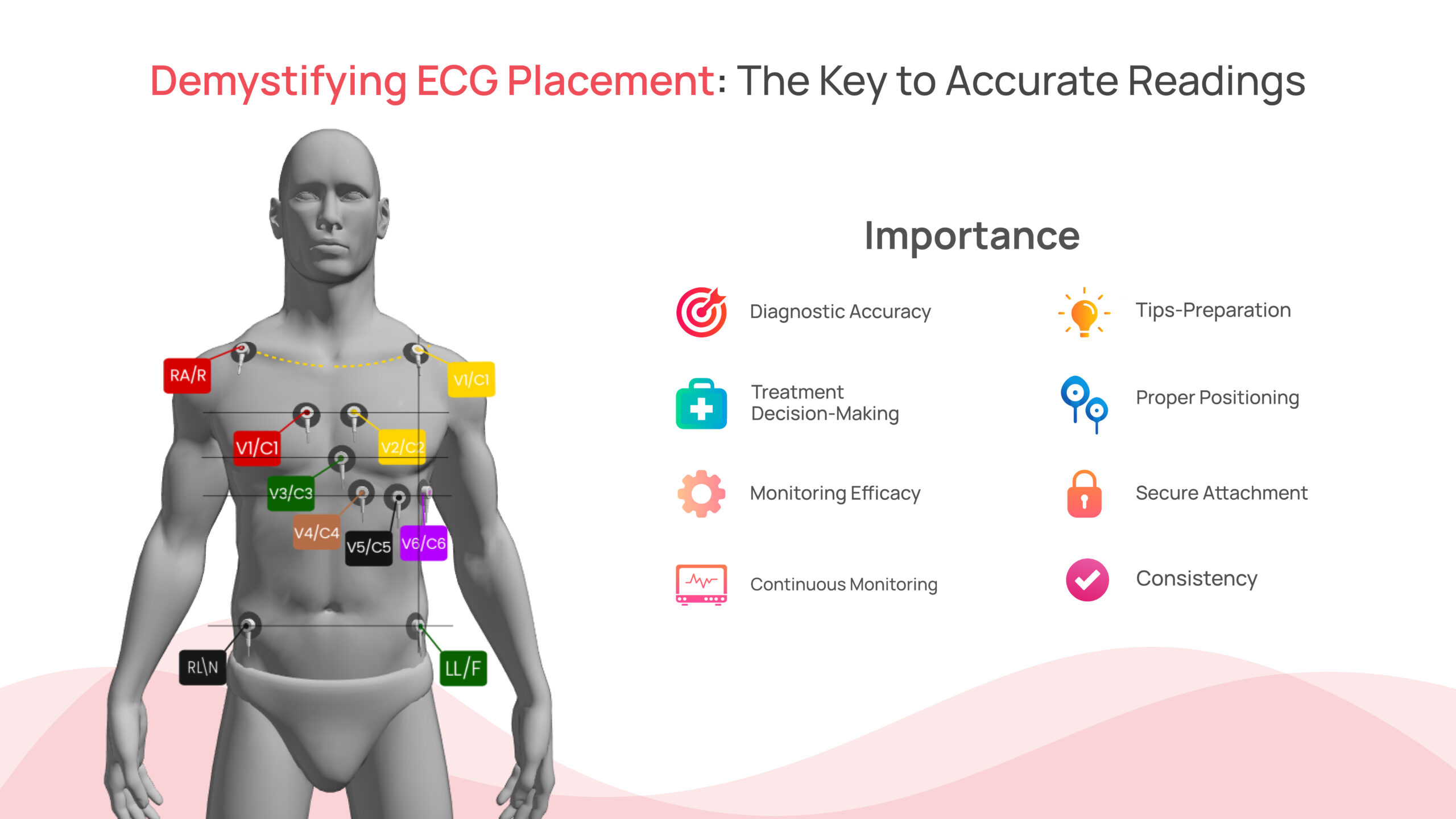

Standard Lead Placements
There are two types of leads in the standard lead placements in the ECG- Limb Leads and Chest (Precordial) leads. Let’s discuss the standard lead placements in an ECG test in a detailed manner now:-
Limb Leads:
- Leads I, II, and III: Leads I, II, and III in the ECG test are known as bipolar limb leads. Lead I is used to record the potential difference between the right and left arms. Lead II, on the other hand, records the difference between the right arm and left leg. Finally, to record the difference between the left arm and the left leg, lead III is used.
- Leads aVR, aVL, and aVF: These three leads in the ECG placement are referred to as the augmented unipolar limb leads. Lead aVR captures the impulses generated by the heart from the perspective of the right arm, lead aVL captures the impulses generated by the heart from the perspective of the left arm, and lead aVF captures the impulses generated by the heart from the perspective of the left foot.
Chest (Precordial) Leads: Leads V1 to V6 are referred to as chest (precordial) leads. These leads are placed across the chest of the patients at specific points. V1 is placed in the fourth intercostal space at the right sternal border, while V6 is placed in the fifth intercostal space at the mid-axillary line.
Importance of ECG Placement Accuracy
The importance of ECG placement accuracy in the realm of cardiac care cannot be overstated. From diagnostic accuracy to treatment decision-making, accurate electrode placement comes in handy in all of these practices in clinical settings:-
- Diagnostic Accuracy: Accurate electrode placement in the ECG test is essential for diagnosing all kinds of heart abnormalities. If the electrode placement is correct, all heart conditions ranging from heart palpitations to cardiac arrhythmias to myocardial infarction (heart attacks) can be detected accurately through an abnormal ECG in the report.
- Motoring Efficacy: The correct electrode placement ensures monitoring efficacy in continuous monitoring settings such as telemetry units or during exercise stress tests. Through this, healthcare professionals can track changes in the heart’s electrical activity over a period of time.
- Treatment Decision-Making: The findings in the ECG test often help healthcare professionals decide the treatment plan for the patient. If the placement of the electrodes is wrong then wrong treatment strategies might be adopted by healthcare professionals which can lead to further worsening of the patient’s condition.
Tips for Accurate ECG Placement
For accurate ECG placement, healthcare professionals need a steadfast approach. They must have learned all the specifics of electrode placement in the ECG test and then proceeded with the test. The following are some tips they can implement prior to performing an electrocardiogram test:-
- Preparation: Preparation before the electrode placement is necessary. As a healthcare professional, you must ensure that the patient’s skin is clean and dry, and not have applied any kinds of oils or lotions. This is done so that nothing can interfere with electrode adhesion and signal transmission.
- Proper Positioning: Make sure that the limb electrodes are placed on bony prominences, i.e. wrists and ankles. On the other hand, the chest electrodes must be placed in accordance with the anatomical landmarks to ensure consistency.
- Secure Attachment: To prevent movement artifacts, ensure that the electrodes are placed on the skin of the patient firmly. Any movement artifacts during the ECG test can distort ECG tracings and compromise accuracy, so you must steer clear of that with a secure attachment.
- Consistency: You must follow the standardized ECG protocols to maintain consistency and ensure the accurate comparison of ECG readings over time or with changes in healthcare professionals.
- Continuous Monitoring: When the monitoring is prolonged, you must ensure that electrodes are constantly placed in the correct positions. Make sure that nothing is detached or moved from its position to ensure accurate readings in the ECG report.
In conclusion, ECG placement is paramount in detecting different heart abnormalities whether they are arrhythmias of different arrhythmia classifications or major heart problems like STEMI or N-STEMI. Without the correctly placed electrodes on the skin of the patient, the electrocardiogram has no reliability or accuracy. You must learn the ECG placement entirely to ensure that the patient gets the ECG test done with utmost precision.
